Create Workload¶

A workload is an application running on Kubernetes. Whether a workload is a single component or several that work together, on Kubernetes you run it inside a set of pods.

Accessing Workload Creation¶

After logging into CHAI™, click on the project that contains the blueprint you want to deploy.
Click Cruize on the left side in the menu and click on the blueprint you want to deploy.

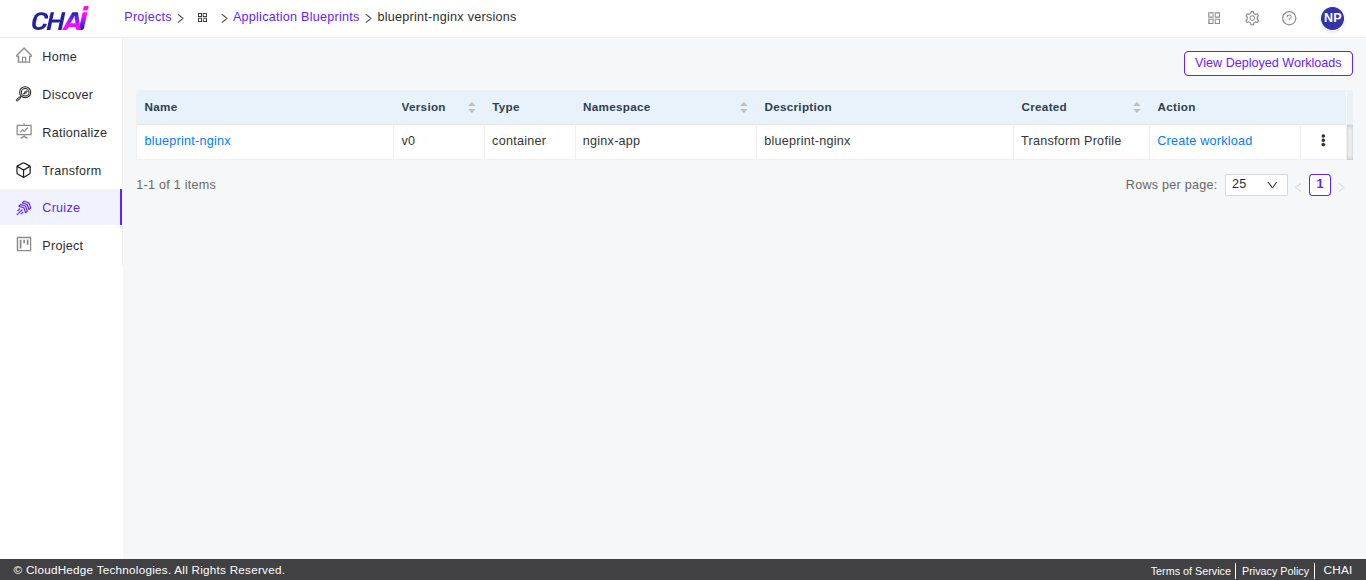

Click Create workload from the action column to create a workload.

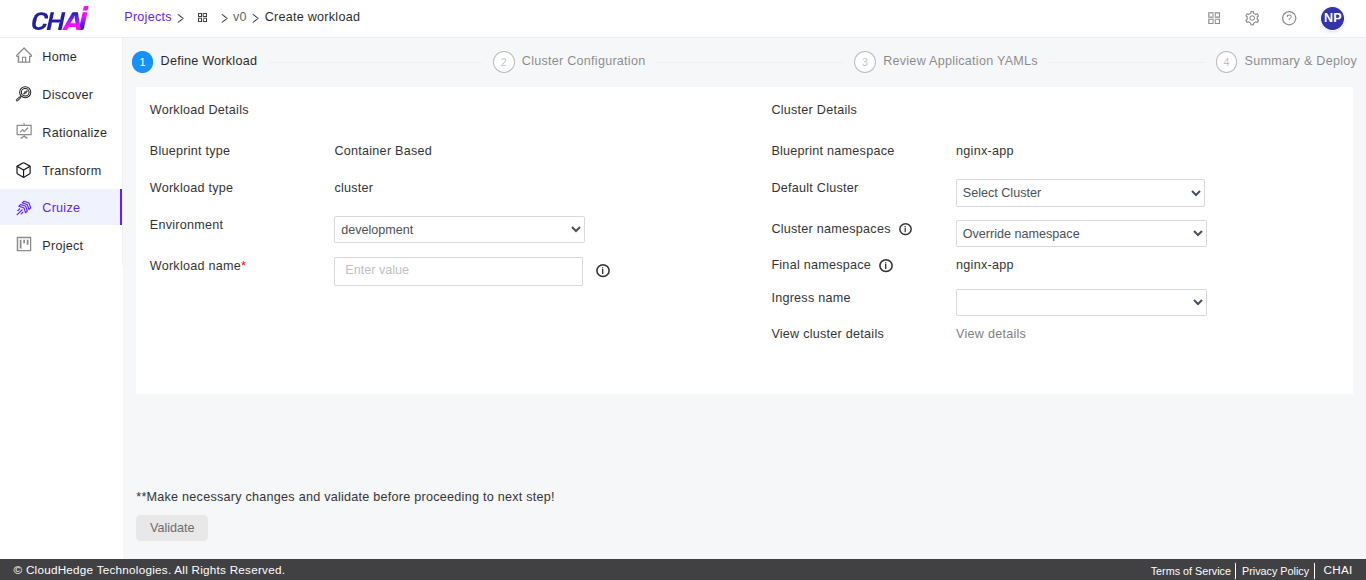

Once you click Create workload, a form will open to provide all details as shown in the image below.

Steps to Create Workload¶

There are three steps while creating a workload:

Step 1: Define Workload¶

In the define workload form, provide workload and cluster details to proceed to the next step.

1. Workload Name¶

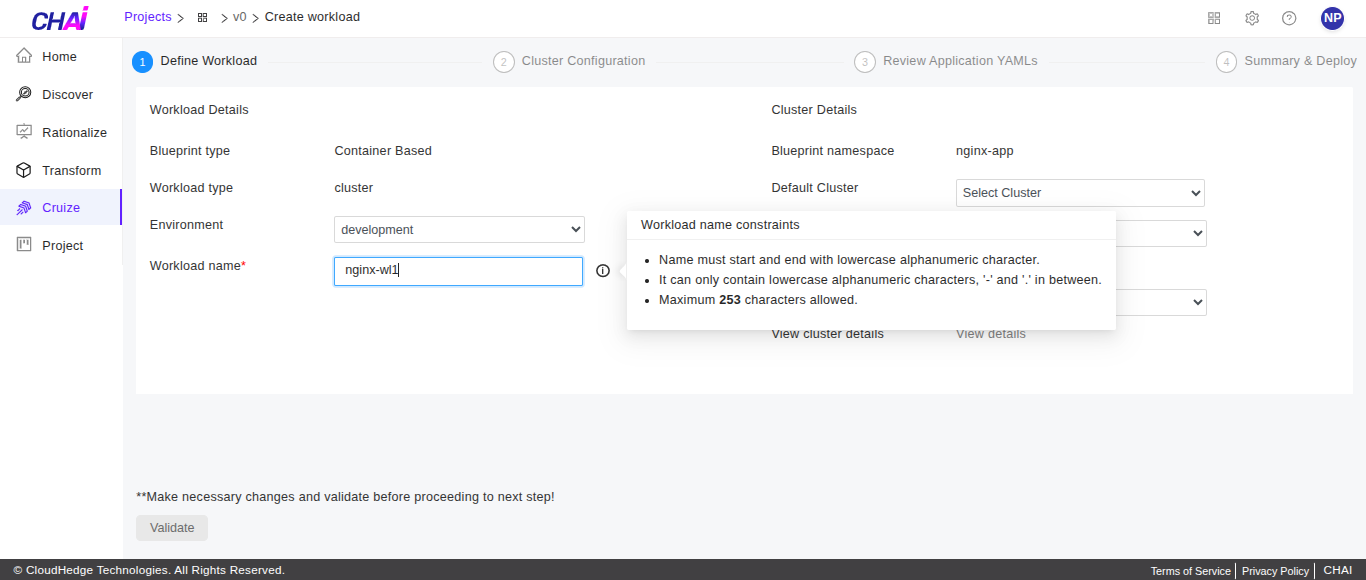

Naming requirements: - Name can contain only alphanumeric characters, hyphens (-), or periods (.) - Must start and end with an alphanumeric character - Maximum 253 characters allowed

creating-workload

2. Environment¶

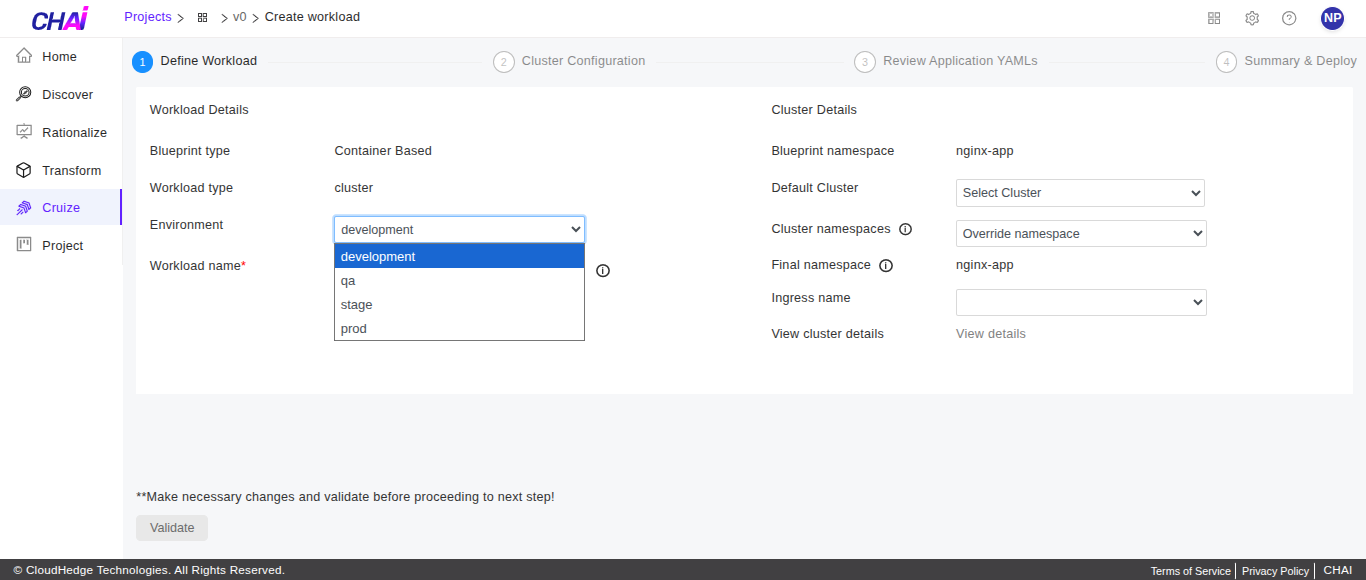

Select the appropriate environment which will be used while deploying the blueprint
Available environments are: Development, Stage, QA, and Production

creating-workload

3. Cluster Details¶

Provide the following cluster details:

Field	Description
Cluster namespace	Namespace defined while creating the blueprint will be auto-populated here. You can use the dropdown to select a different namespace.
Cluster	Select the cluster here. Clusters created under the cluster section will be listed here.
Final namespace	The finalized namespace will be populated here.
Ingress name	Select the ingress name here. Ingress controllers available on the selected cluster will be listed here.

Cluster¶

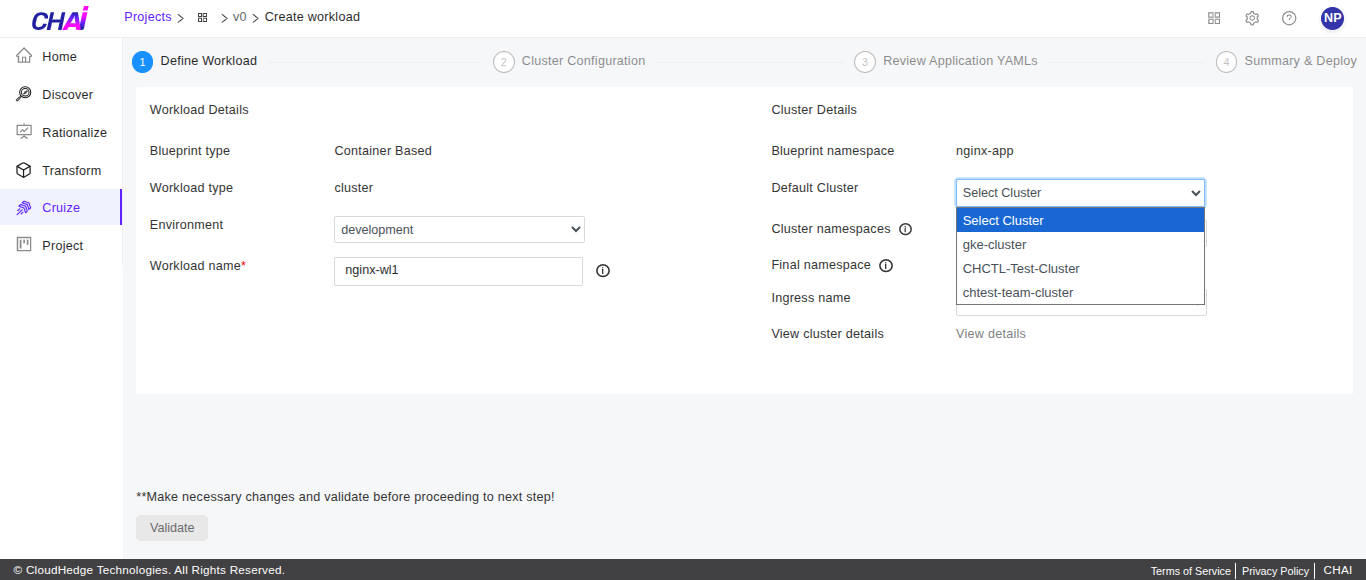

Select the cluster which will be used for deployment
Click here to learn more about clusters

creating-workload

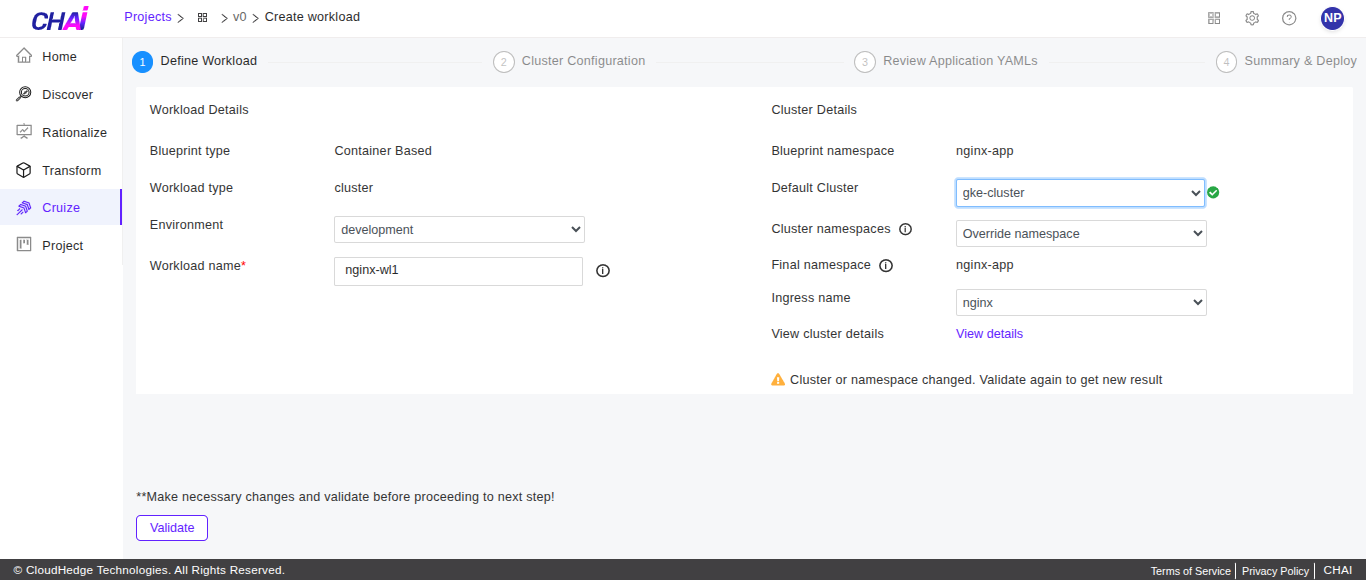

After selecting the cluster, it will fetch the details of the selected cluster and its availability. Once it fetches details successfully, a green check mark will be shown beside the selected cluster as shown in the image below.

creating-workload

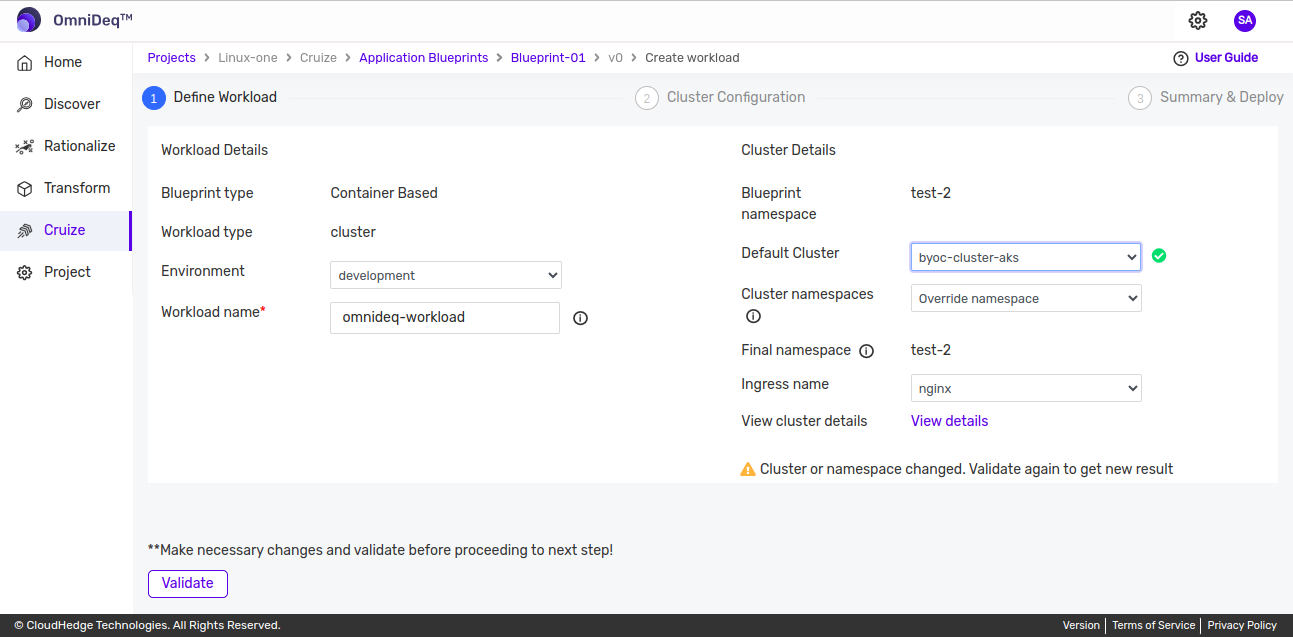

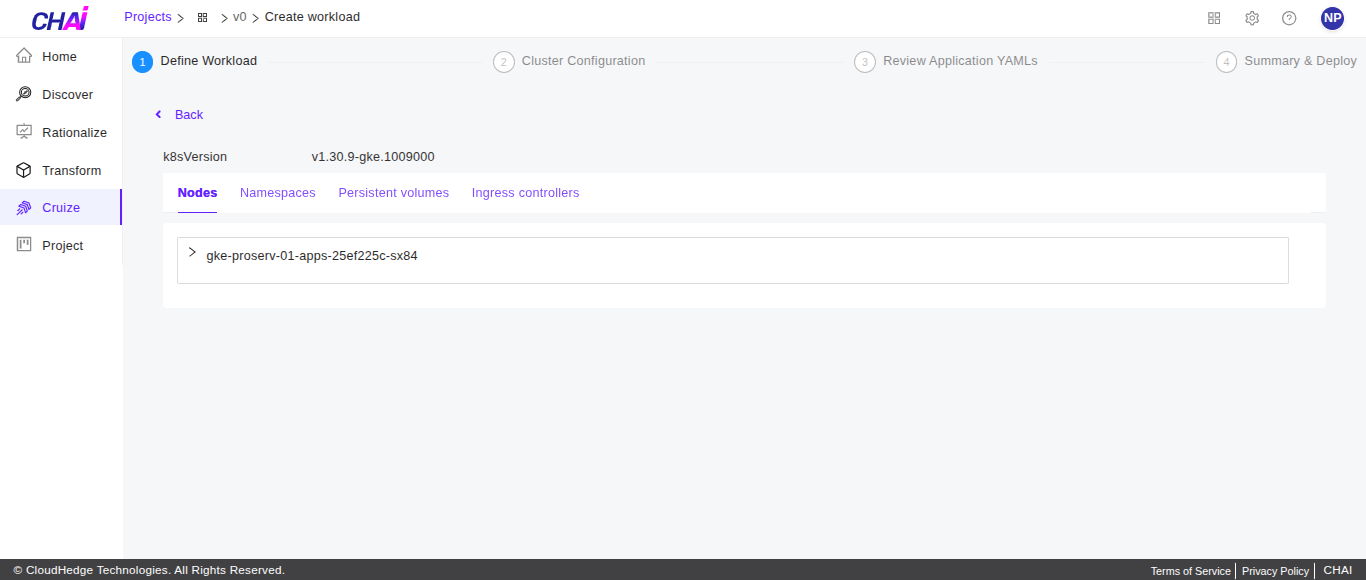

To view details of the cluster, click the View details link, which will show all cluster details such as Kubernetes version, nodes, ingress controllers, and persistent volumes as shown in the image below.

creating-workload

Cluster Namespaces¶

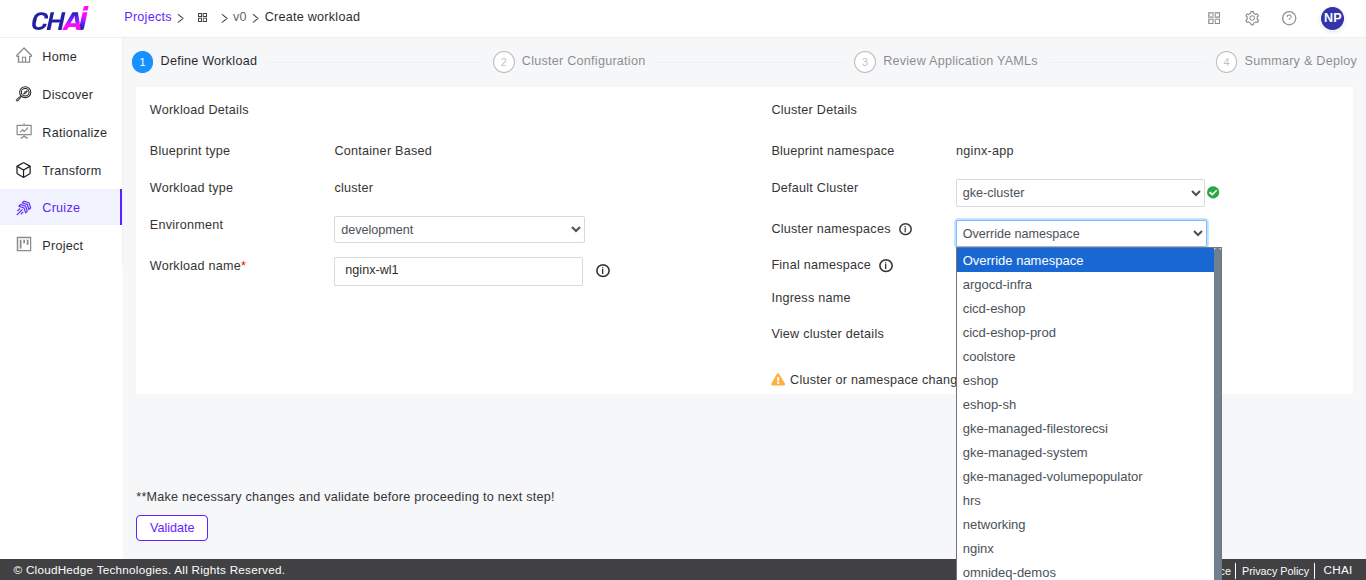

If the namespace defined while creating the blueprint is not available on the cluster, you can override the namespace from the list
Cluster namespaces available on the selected cluster will be listed here

creating-workload

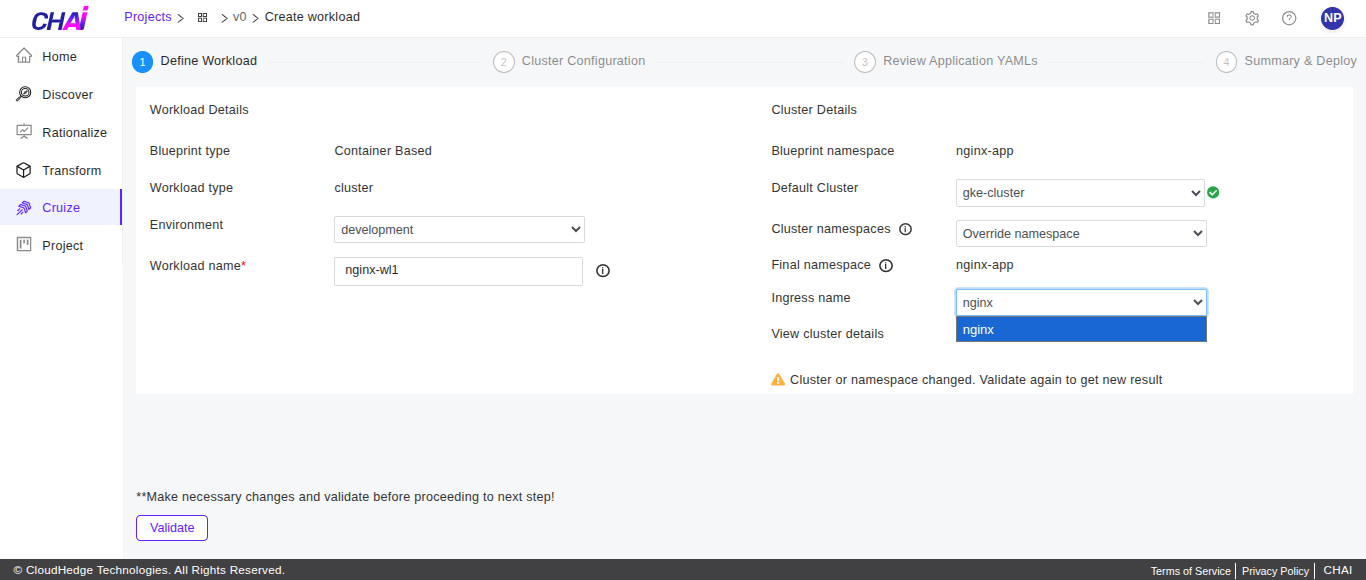

Ingress Name¶

Select the ingress here
Ingress controllers available on the selected cluster will be listed here

creating-workload

Validate Details¶

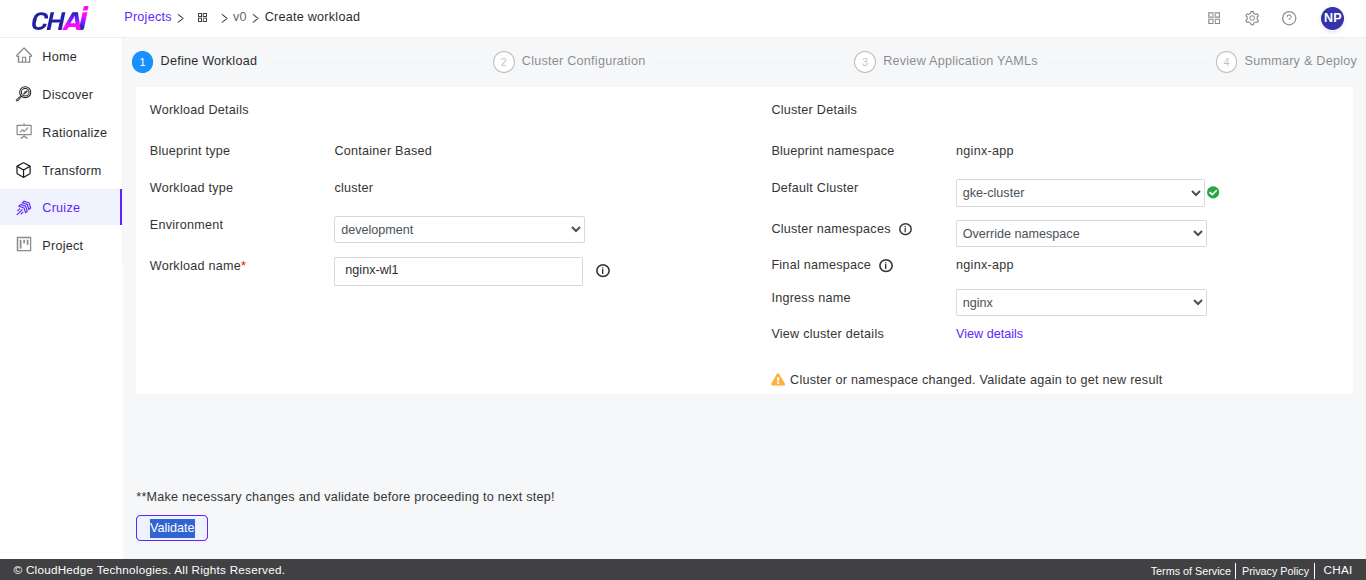

Once all valid details are provided in the define workload form, the Validate button displayed at the bottom will be enabled.

creating-workload

Click the Validate button, which will validate all provided details before proceeding to the next step.

Step 2: Cluster Configuration¶

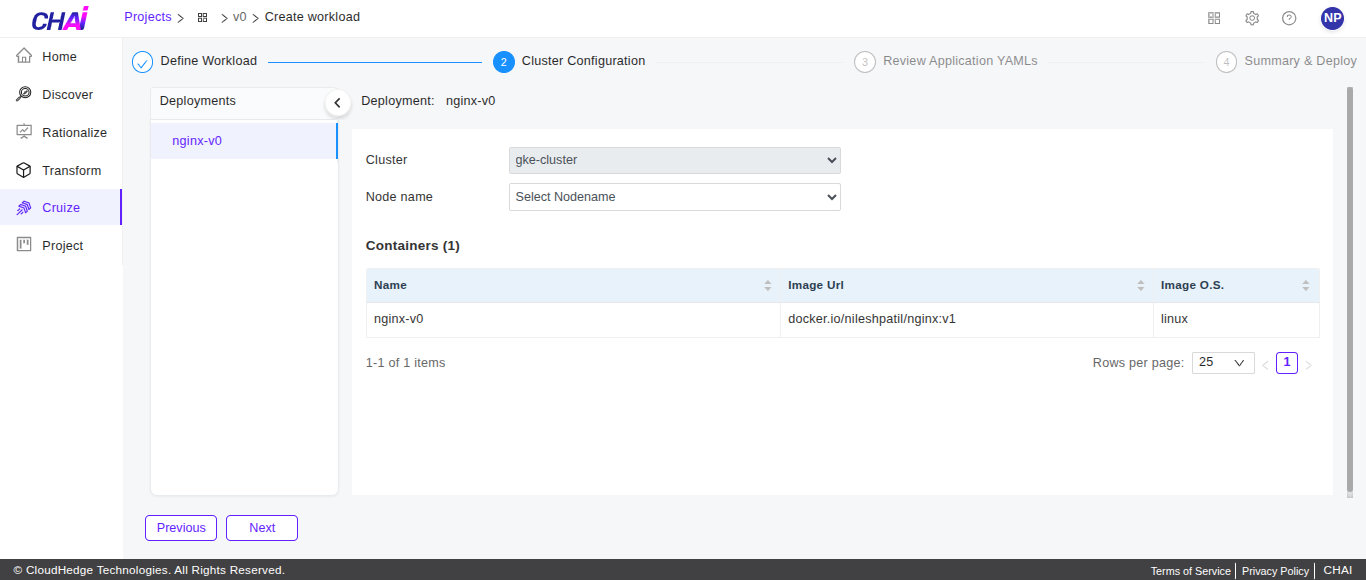

After successfully validating workload and cluster details, you will be navigated to the Cluster Configuration step as shown below.

creating-workload

Under cluster configurations, all deployments of the selected blueprint version will be listed with all container details such as name, image URL, and image OS as shown in the image above.

Select Node Names¶

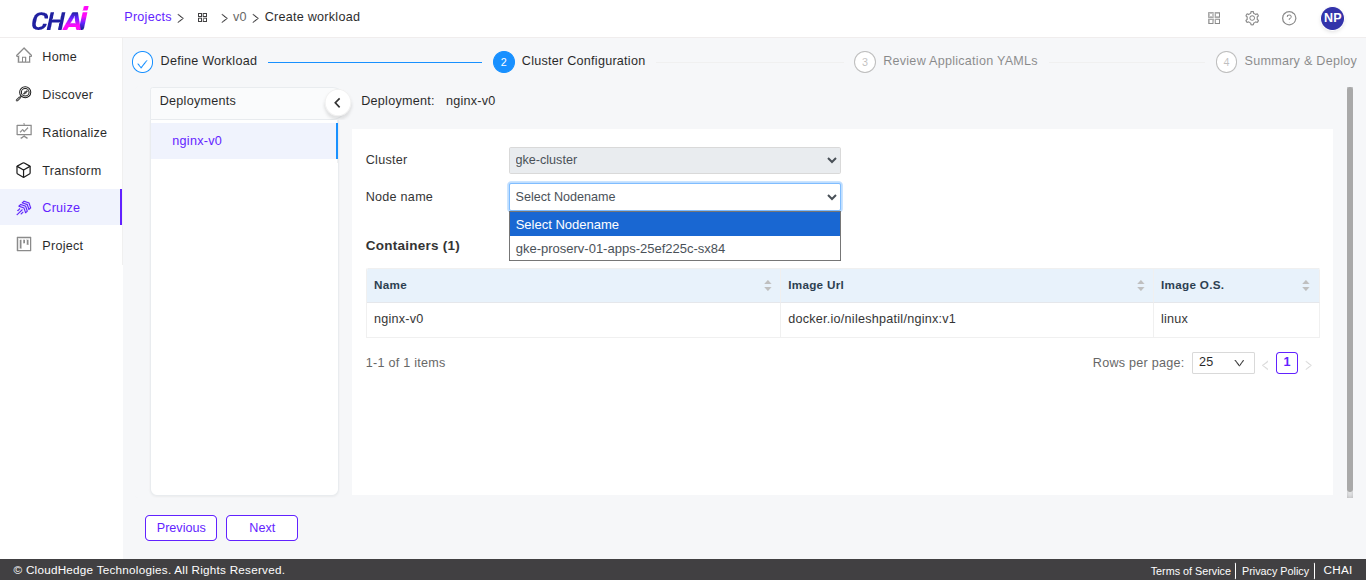

For every listed deployment, select the node from the nodes which are available on the selected cluster. Node name selection is optional.

creating-workload

Proceed to Next Step¶

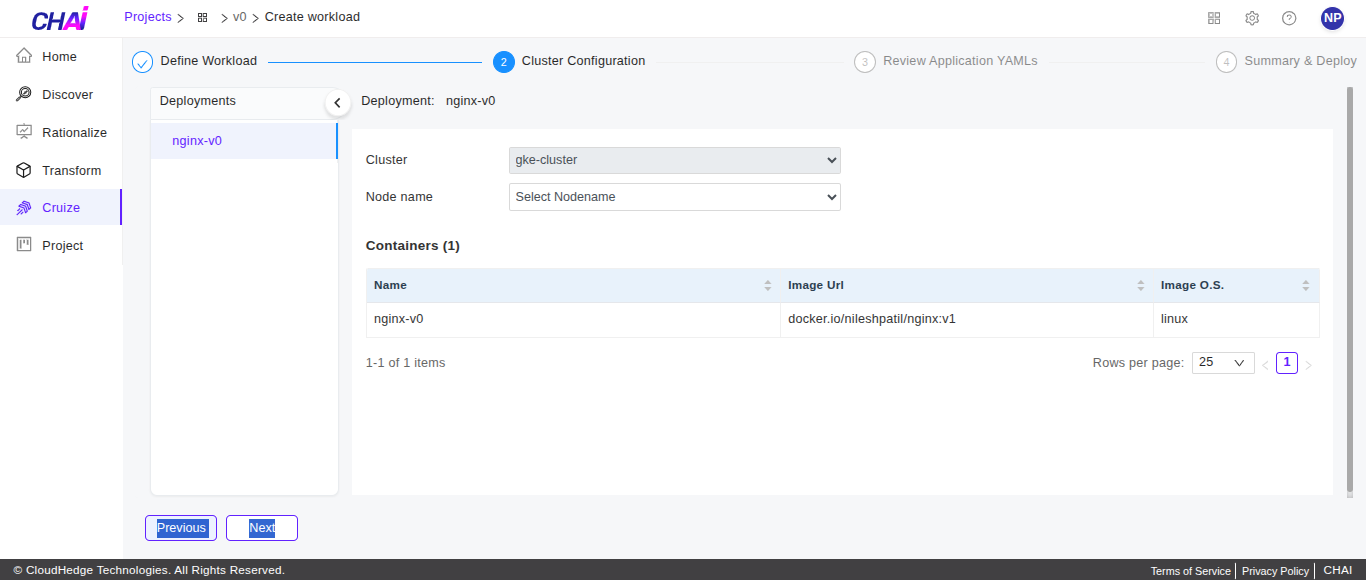

After reviewing deployment and container details, proceed to the next step Summary & Deploy using the Next button below.

creating-workload

You can also go to the previous step using the Previous button.

Step 3: Summary & Deploy¶

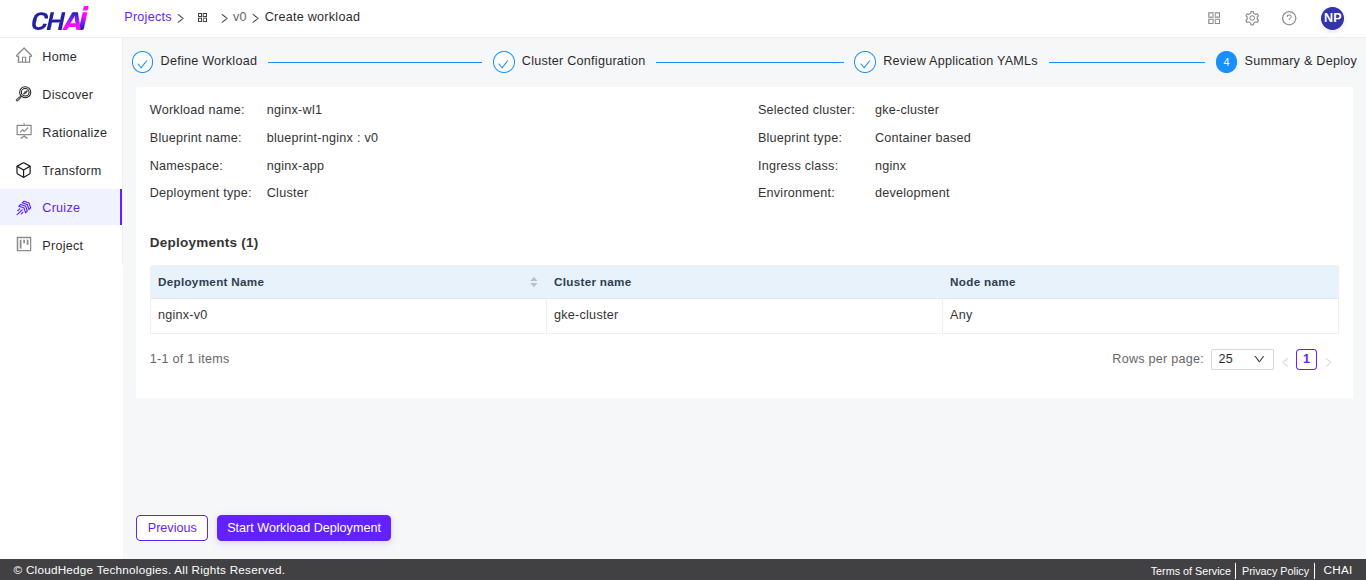

Under the Summary & Deploy step, a summary of all provided workload, cluster, and node details will be shown.

creating-workload

Review and Deploy¶

Review all provided details here before starting workload deployment.

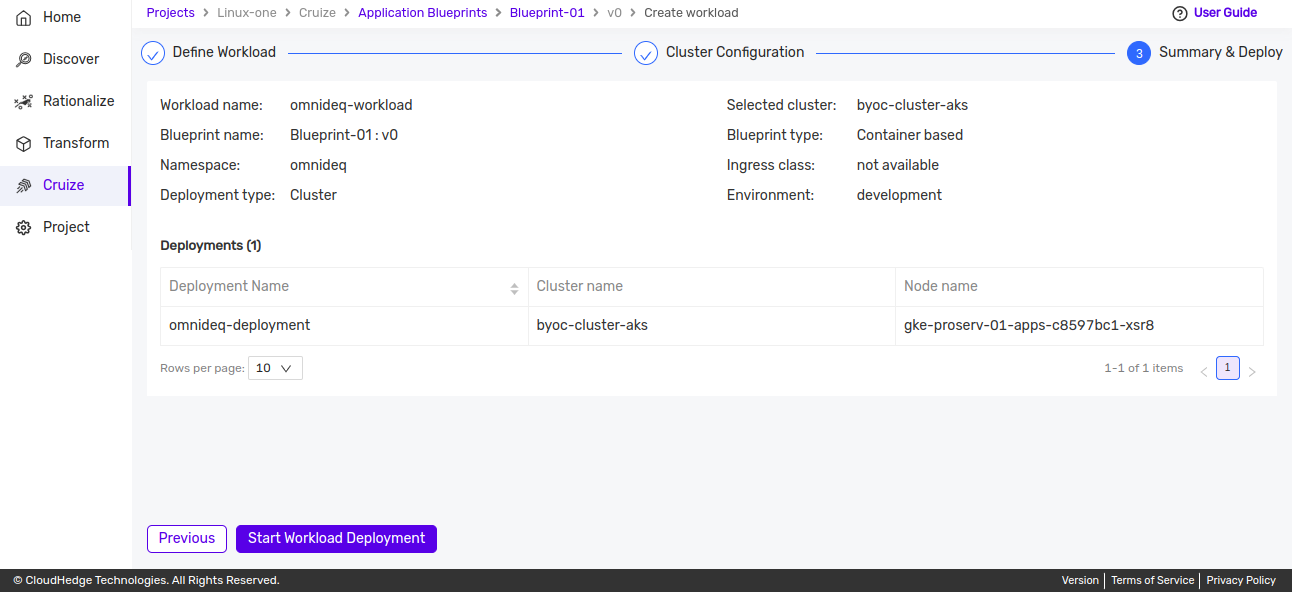

Click the Start Workload Deployment button to start workload deployment.

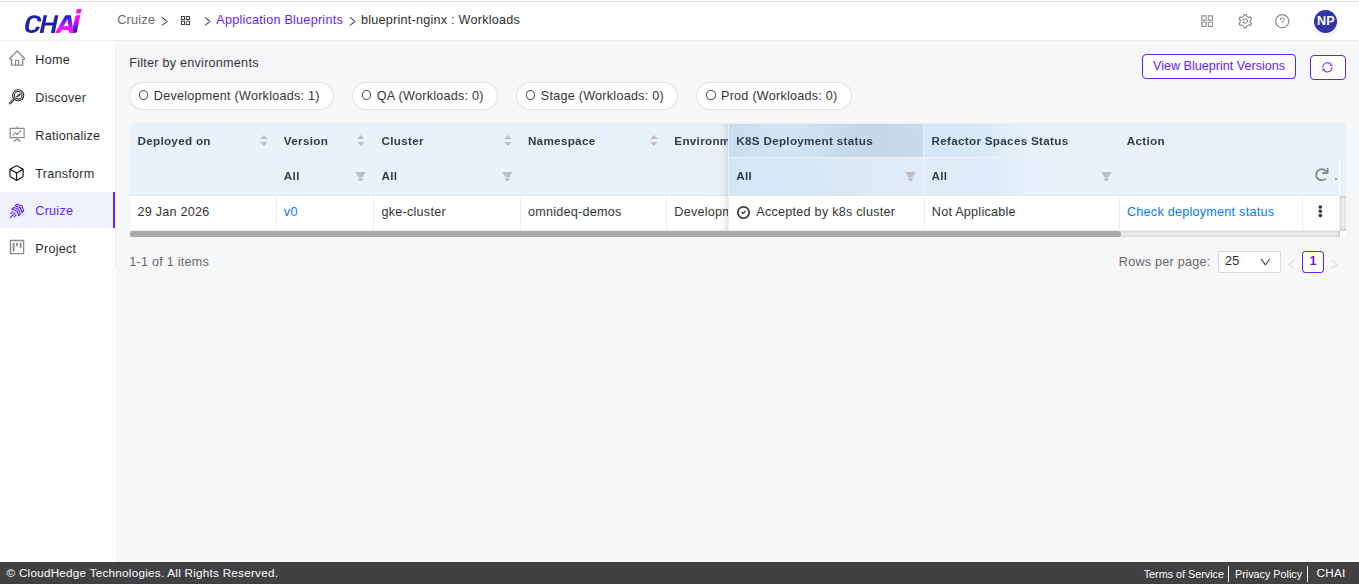

After successfully starting deployment, you will be navigated to the workloads page as shown below.

Reference:
For more details on workloads, please refer to Managing Workloads.
